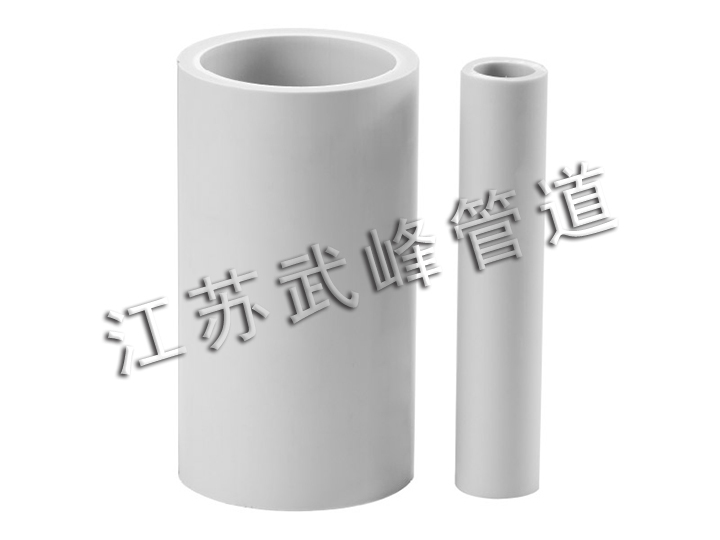

PPH管道
|
Nominal |
Socket Type |
|
SIZE |

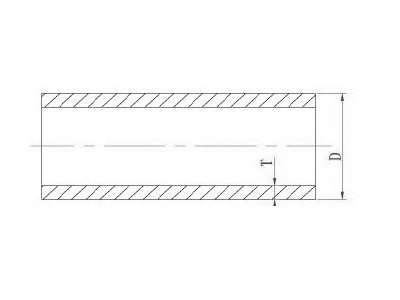

D |
Toleran |
T（min/mm） |
|
S5 |
S4 |
S3.2 |
S2.5 |
|
1/2" |
20.00 |
+0.30 |
2.00 |
2.30 |
2.80 |
3.40 |
|
3/4" |
25.00 |
+0.30 |
2.30 |
2.80 |
3.50 |
4.20 |
|
1" |
32.00 |
+0.30 |
2.90 |
3.60 |
4.40 |
5.40 |
|
1-1/4" |
40.00 |
+0.40 |
3.70 |
4.50 |
5.50 |
6.70 |
|
1-1/2" |
50.00 |
+0.50 |
4.60 |
5.60 |
6.90 |
8.30 |
|
2" |
63.00 |
+0.60 |
5.80 |
7.10 |
8.60 |
10.50 |
|
2-1/2" |
75.00 |
+0.70 |
6.80 |
8.40 |
10.30 |
12.50 |
|
3" |
90.00 |
+0.90 |
8.20 |
10.10 |
12.30 |
15.00 |
|
4" |
110.00 |
+1.00 |
10.00 |
12.30 |
15.10 |
18.30 |
|
5" |
140.00 |
+1.20 |
11.40 |
14.00 |
17.10 |
20.80 |
|
6" |
160.00 |
+1.30 |
12.70 |
15.70 |
19.20 |
23.30 |
|
8" |
200.00 |
+1.50 |
14.60 |
17.90 |
21.90 |
26.60 |
